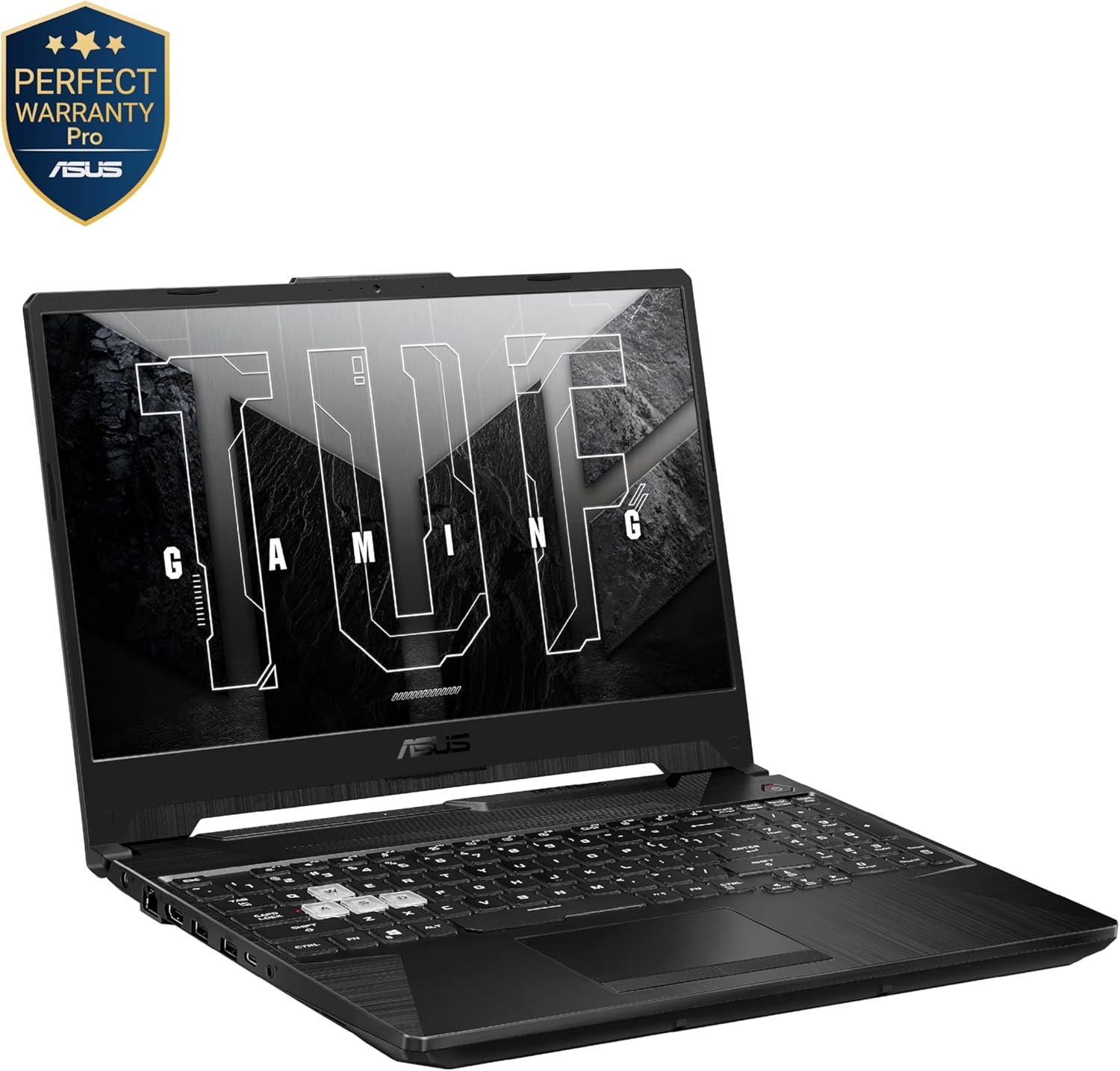

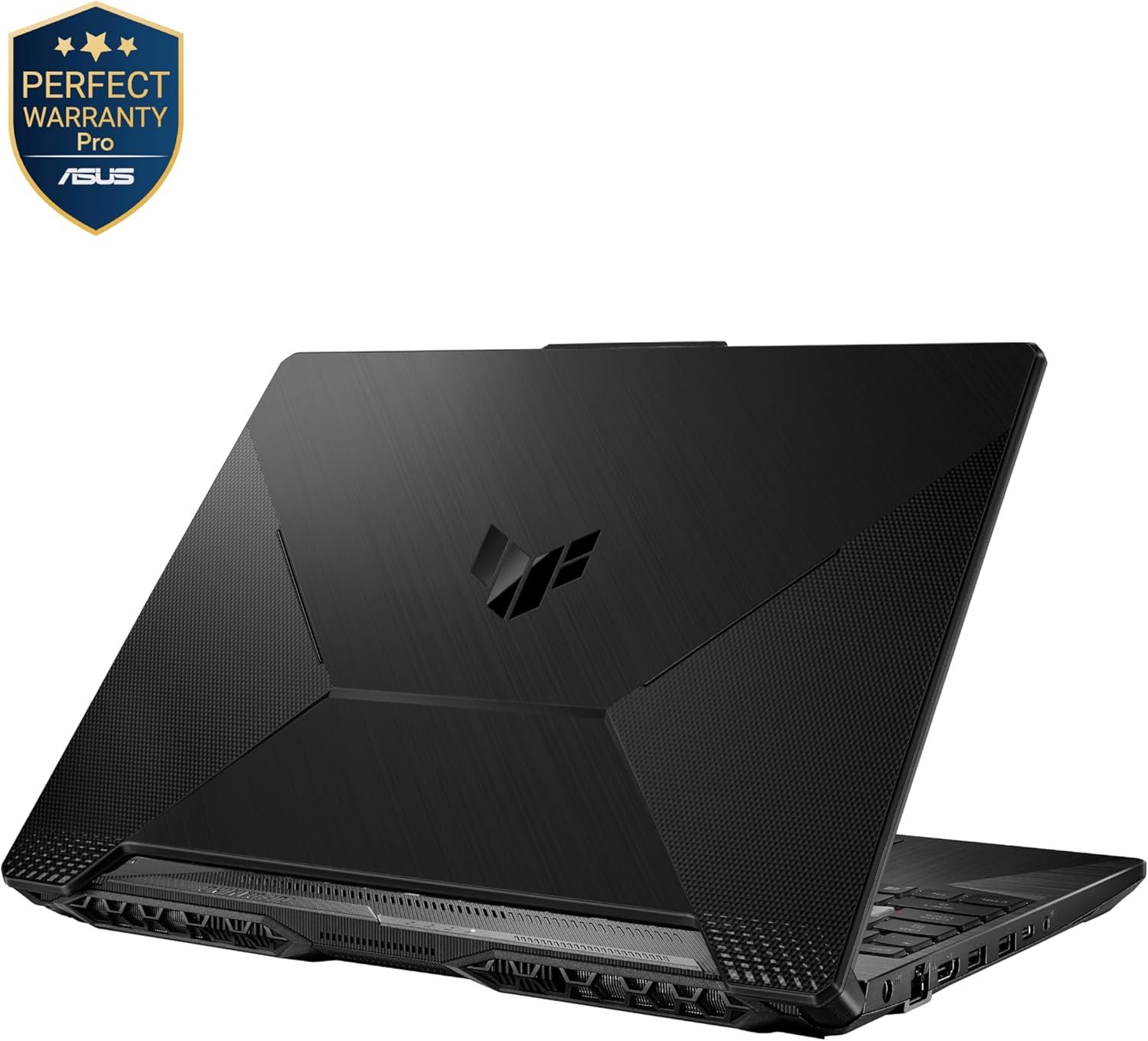

ASUS TUF Gaming F16 FX607VJB-RL123W – Core 5 210H – RTX 3050 6GB – 16GB DDR5 – 512GB SSD – 16″ FHD+ 144Hz

Part No

90NR0MZ6-M006R0

Sales Model Name

FX607VJB-RL123W

EAN Code

4711636268486

UPC Code

199291268487

WEEE

2.798

BASE UNIT

VSNR0MZ6-BU1000

Marketing Name

ASUS TUF Gaming F16

Operating System

Windows 11 Home

Office

1-month trial for new Microsoft 365 customers. Credit card required.

Color

Mecha Gray

Dimension (W x D x H)

35.4 x 25.1 x 2.21 ~ 2.67 cm (13.94″ x 9.88″ x 0.87″ ~ 1.05″)

Weight

2.20 Kg (4.85 lbs)

Processor

Intel® Core™ 5 Processor 210H 2.2 GHz (12MB Cache, up to 4.8 GHz, 8 cores, 12 Threads)

Chipset

N/A

Intergrated GPU

Intel® Graphics

Discrete/Optimus

MUX Switch + NVIDIA® Advanced Optimus

Graphic

NVIDIA® GeForce RTX™ 3050 Laptop GPU

Graphic Wattage

2195Mhz at 65W (2145MHz Boost Clock+50MHz OC, 50W+15W Dynamic Boost)

Graphic Memory

6GB GDDR6

Panel Size

16-inch

Resolution

FHD+ 16:10 (1920 x 1200, WUXGA)

Refresh Rate

144Hz

Response Time (G2G)

3ms

Viewing Angle

85/85/85/85

Panel Tech

IPS-level

Brightness

300nits

Contrast Ratio

1000:1

NTSC %

45%

Surface texture of display

Anti-glare display

Adaptive-Sync technology

N/A

Pantone

N/A

Support Dolby Vision HDR

N/A

On board memory

N/A

DIMM Memory

8GB DDR5-5600 SO-DIMM, the memory speed of the systems vary by CPU SPEC *2

Total System Memory

DDR5 16GB

Memory Slot

2x SO-DIMM slots

Memory Max.

64GB

Multi-channel memory technology

Support dual channel memory technology

Storage

512GB PCIe® 4.0 NVMe™ M.2 SSD

M.2 slots support either SATA or NVMe

2

M.2 SSD Support List

M.2  2TB G4X4 PCIe SSD

M.2 1TB G4X4 PCIe SSD

M.2 512GB G4X4 PCIe SSD

Expansion Slot (includes used)

2x DDR5 SO-DIMM slots

LAN

10/100/1000 Mbps

Wireless

Wi-Fi 6(802.11ax) (Dual band) 2*2 + Bluetooth® 5.3 Wireless Card (*Bluetooth® version may change with OS version different.)

I/O Ports

1x RJ45 LAN port

1x USB 3.2 Gen 2 Type-C with support for DisplayPort™ / power delivery (data speed up to 10Gbps)

2x USB 3.2 Gen 1 Type-A (data speed up to 5Gbps)

Display output

1x HDMI 2.1 FRL

Camera

720P HD camera

Mic

Built-in array microphone

Keyboard Type

Backlit Chiclet Keyboard 1-Zone RGB

With Copilot key

*Copilot in Windows (in preview) is rolling out gradually within the latest update to Windows 11 in select global markets. Timing of availability varies by device and market. Learn more: https://www.microsoft.com/en-us/windows/copilot-ai-features?r=1#faq

Aura Sync

N/A

Touchpad

Touchpad

N/A

Speakers

2-speaker system

Audio

1x 3.5mm Combo Audio Jack

Built-in array microphone

Audio Tech

AI noise-canceling technology

Dolby Atmos

Hi-Res certification (for headphone)

Support Microsoft Cortana near field/far field (Microsoft service suspended in spring of 2023.)

Security

BIOS Administrator Password and User Password Protection

Kensington Security Slot™

Trusted Platform Module (Firmware TPM)

Antivirus

McAfee® 30 days free trial

Battery

56WHrs, 4S1P, 4-cell Li-ion

Fast charging

Recharge from 0-50% in 30 minutes

Power

ø6.0, 150W AC Adapter, Output: 20V DC, 7.5A, 150W, Input: 100~240V AC, 50/60Hz universal

Required charging power

Min: 45W

Max: 100W

*The indicated wattage is for demonstrating the system’s support capability as required by EU regulations. For optimal system performance, please use the standard-wattage adapter or higher.

Xbox Game Pass

Xbox Game Pass for PC_3 months (*Terms and exclusions apply. Offer only available in eligible markets for Xbox Game Pass for PC. Eligible markets are determined at activation. Game catalog varies by region, device, and time.)

Ecolabels & Compliances

N/A

Reparability Index (for FR)

?.?
